Chapter 8

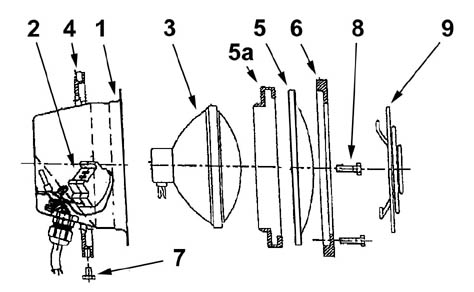

Model 4600 Light parts breakdown

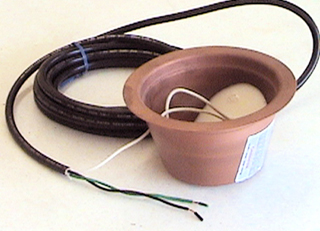

1 - Potted Can

The potted can assembly comes complete with the "Copper Can", "Power Cord" and "Porcelain Bulb Socket" It is available with 10ft, 20ft, 30ft, 40ft, and 50ft, cord lengths.

84300
10ft cord - Potted Can

84309
20ft cord - Potted Can

84393
30ft cord - Potted Can

84395
40ft cord - Potted Can

84397
50ft cord - Potted Can

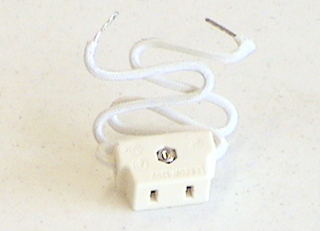

2 - Porcelain Socket

The porcelain bulb socket is the only serviceable part in the potted can. Comes as pictured with socket and wire leads.

84017

Porcelain Light Socket

3 - 300W or 500W Bulb

The 300W or 500w 120V PAR56 bulb is available in either NSP (narrow spot) or MFL (medium Flood)

84012	NSP - Narrow Spot 300W 120V PAR 56
84013	MFL - Medium Flood 300W 120V PAR 56

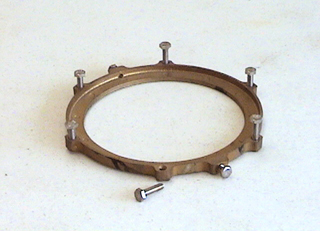

4 - Bottom Flange

The bottom flange is cast brass and is threaded in order to receive the bolts.

84110

Threaded Bottom Flange

5 - Glass Lens

The lenses are constructed out of glass and are available in six colors and clear.

84900	7" Clear Lens
84901	7" Amber Lens
84902	7" Turquoise Lens
84903	7" Light Red Lens
84904	7" Dark Red Lens
84905	7" Blue Lens
84906	7" Green Lens

Lens Color	Light Transmittance		What do these numbers mean? On the clear lens it means that 92% of the light is able to pass through the lens. On the Green lens it means that 3% of the light is able to pass through the lens. That is why the dark colors are only recommended in dimly lit areas.
Clear	92%	Use for maximum brilliance
Amber	55%
Turquoise	23%
Light Red	20%
Dark Red	7%	Use only where other lighting will not interfere with fountain lighting.
Blue	3%
Green	3%

5A - Lens Gasket

The lens gasket is constructed out of red silicone.

38114

Red Silicone Gasket

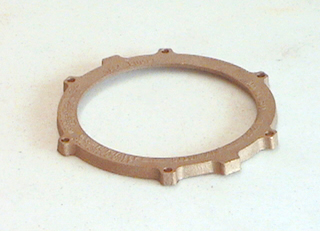

6 - Top Flange

The top flange is cast brass and is NOT threaded. The holes in the flange are large enough for the bolts to freely slide through them.

84112

Top Flange

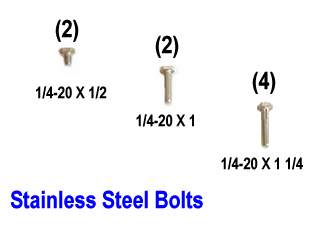

7 & 8 - Stainless Steel Bolts

There are three different lengths of stainless steel bolts. Two for the mounting holes, four for the holes with the rock guard, and two for the remaining holes.

84220	1/4-20 x 1/2 (2) required
87860	1/4-20 x 1 (2) required
86101	1/4-20 x 1 1/4 (4) required

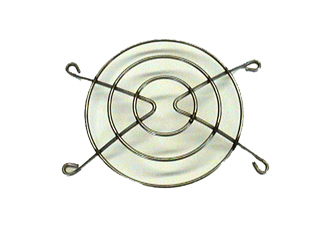

9 - Stainless Steel Rock Guard

39069

Stainless Steel Rock Guard

Bronze Base and Yoke

84560	Cast Bronze Base and Yoke complete
85220	Base only, Cast Bronze
84131	Bracket only - Brass
84220	1/4-20 x 1/2" SS Bolt
87274	Lock washer Split type 1/4"
